Infineon BDC motor gate drivers - TLE92108-232QX
Infineon BDC motor gate drivers - TLE92108-232QX  Infineon BDC motor gate drivers - TLE92108-232QX  Infineon BDC motor gate drivers - TLE92108-232QX  Infineon BDC motor gate drivers - TLE92108-232QX

Infineon BDC motor gate drivers - TLE92108-232QX

  • Availability: In Stock
  • Free Shipping
  • Shipping Time: 4~10 Business Days

  • $2.60

  • 100 or more $1.38
  • 500 or more $1.30
  • 1000 or more $1.25
  • 2000 or more $1.23
  • 5000 or more $1.18


This product has a minimum quantity of 10
⚠️ CRITICAL COMPATIBILITY NOTICE

ADAPTER MODEL VS. CONNECTOR:
The same Adapter Model Number (e.g., A17-230P1B) may have Different plug sizes. Do not purchase by the adapter model alone.

STEP 1

Confirm your Laptop Model matches our Product Title.

STEP 2

Verify the Plug Size (Outer/Inner Diameter) in the specifications.

Not sure? Send us your Laptop Model for 100% confirmation!

The TLE92108-232QX is a Multi-MOSFET driver IC dedicated to control up to sixteen n-channel MOSFETs. It includes eight halfbridges for DC motor control applications such as automotive power seat control or other applications.

A 24-bit Serial Peripheral Interface (SPI) is used to configure the TLE92108-232QX and to control the half-bridges. It also allows the read out of the status registers for diagnostic purpose.

The TLE92108-232QX offers a wide range of diagnostic features such as the monitoring of the supply voltage, the charge pump voltage, temperature warning and over-temperature shutdown. Each gate driver monitors independently its external MOSFET drain-source voltage for fault conditions.

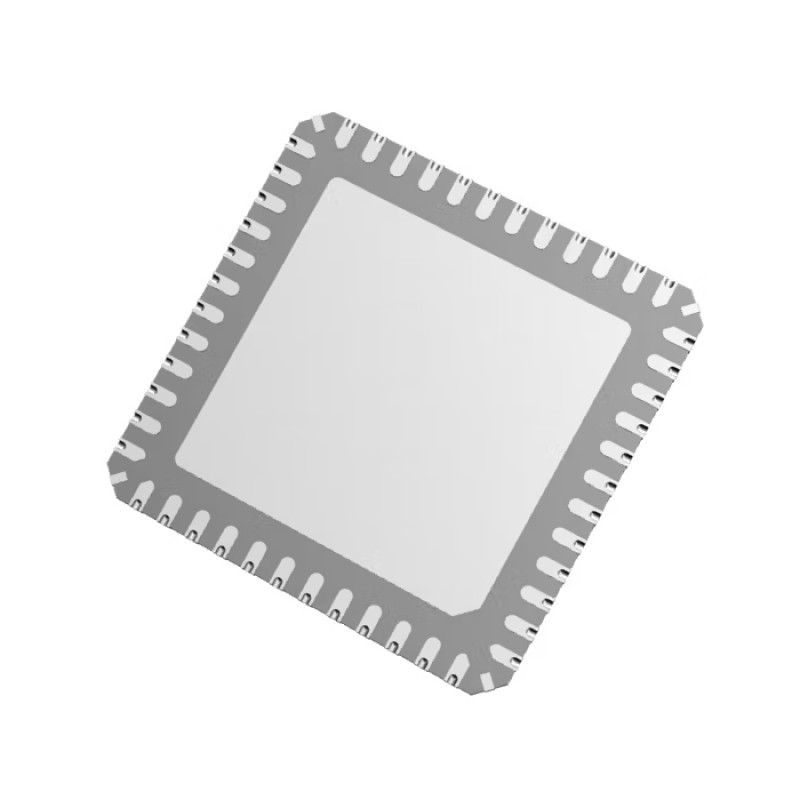

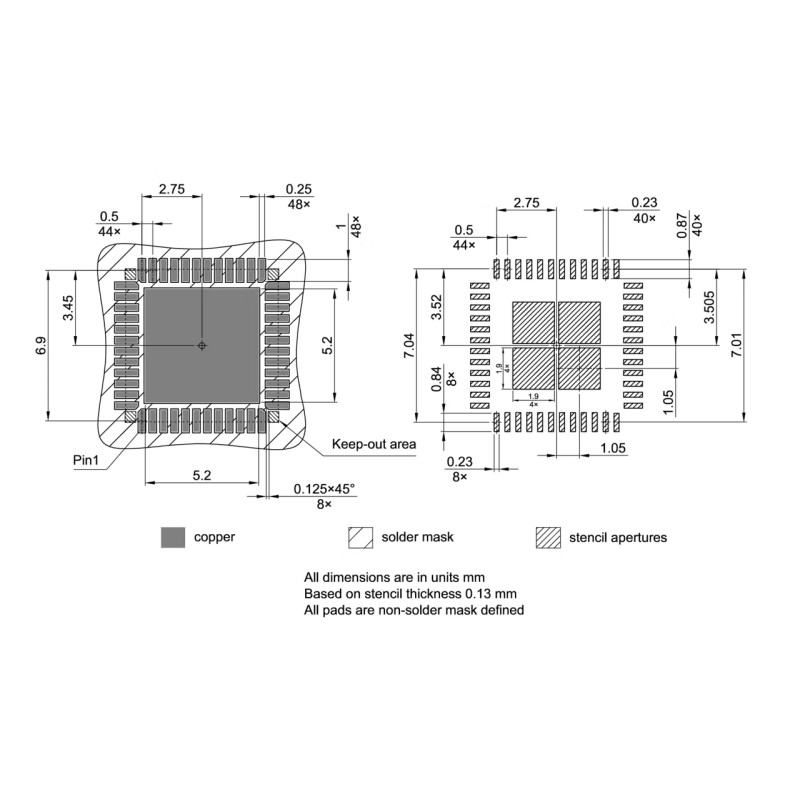

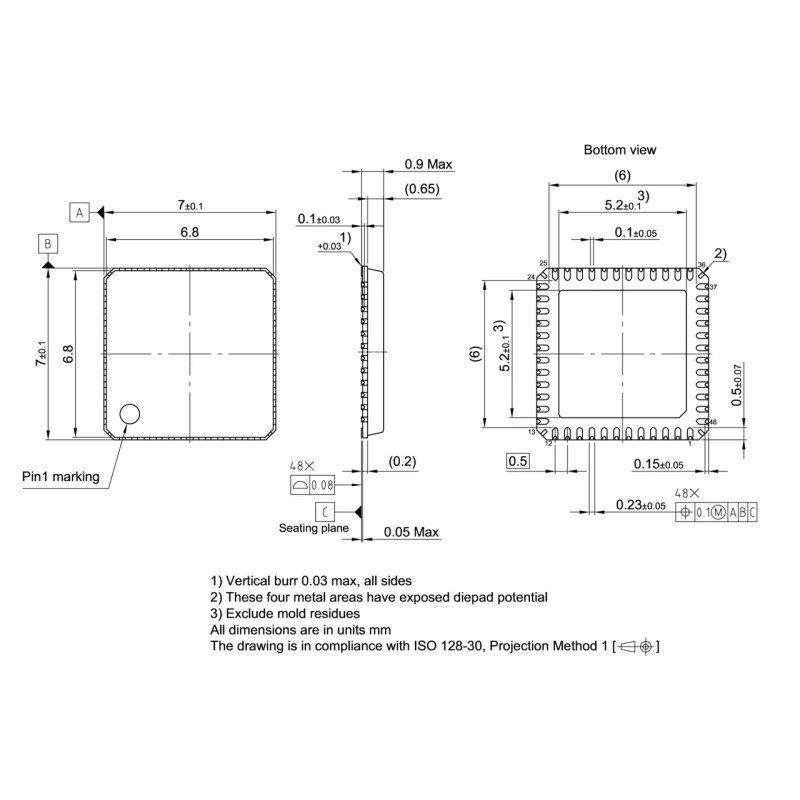

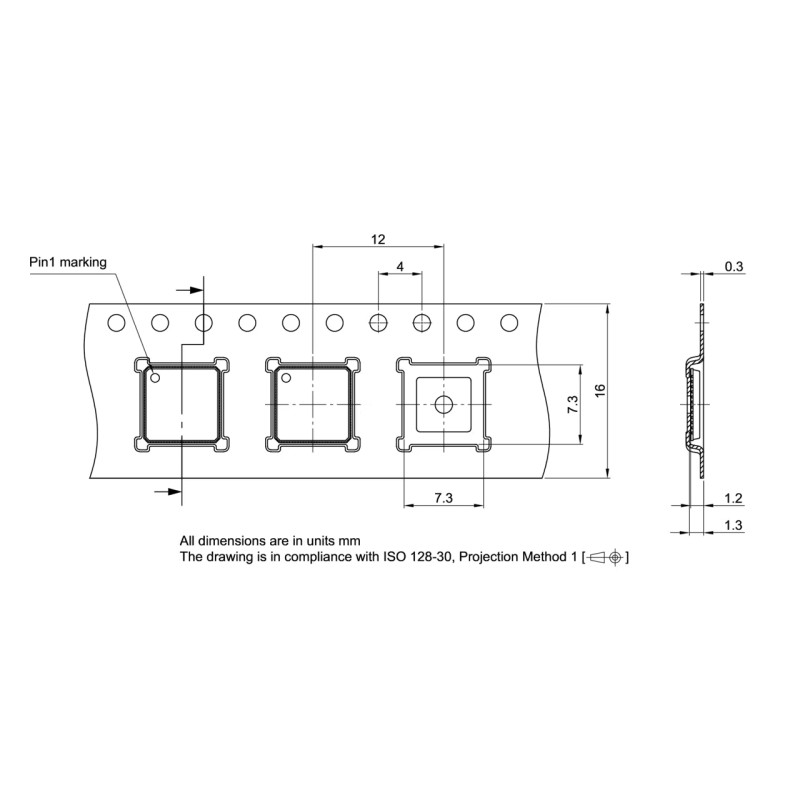

The device is housed in a VQFN-48 with exposed pad supporting lead tip inspection. The package provides a good thermal performance and minimizes the required PCB space.

Features

  • Eight half-bridge gate drivers for external N-channel MOSFETs
  • Control of reverse battery protection MOSFET
  • Adaptive MOSFET gate control
    • Improved electromagnetic emission
    • Reduced switching losses in PWM mode
  • 24-bit Serial Peripheral Interface
  • Two current sense amplifiers with configurable gain
    • High-side and low-side capable for protection and diagnosis
  • Drain-source monitoring for short circuit detection
  • Overtemperature warning and shutdown
  • Timeout watchdog
  • Detailed off-state diagnostic (open load, short circuit to battery or short circuit to GND) via SPI
  • Three PWM inputs
    • High-side and low-side PWM capable
    • Active free-wheeling
    • Up to 25 kHz PWM frequency
  • Low current consumption in sleep mode
  • Configurable low-side 1-4 brake with short circuit detection in sleep mode and normal mode
  • Configurable VS overvoltage detection in sleep mode
  • Leadless power package with support of optical lead tip inspection
  • Green Product (RoHS compliant)
  • AEC Qualified

Potential applications

  • Seat control and extended functions (steering column adjustment, gas pedal adjustment)
  • Power lift gate
  • Central door lock
  • Body control module (cargo cover, washer pump, window lift, rear wiper ...)

Product validation
Qualified for automotive applications. Product validation according to AEC-Q100.
