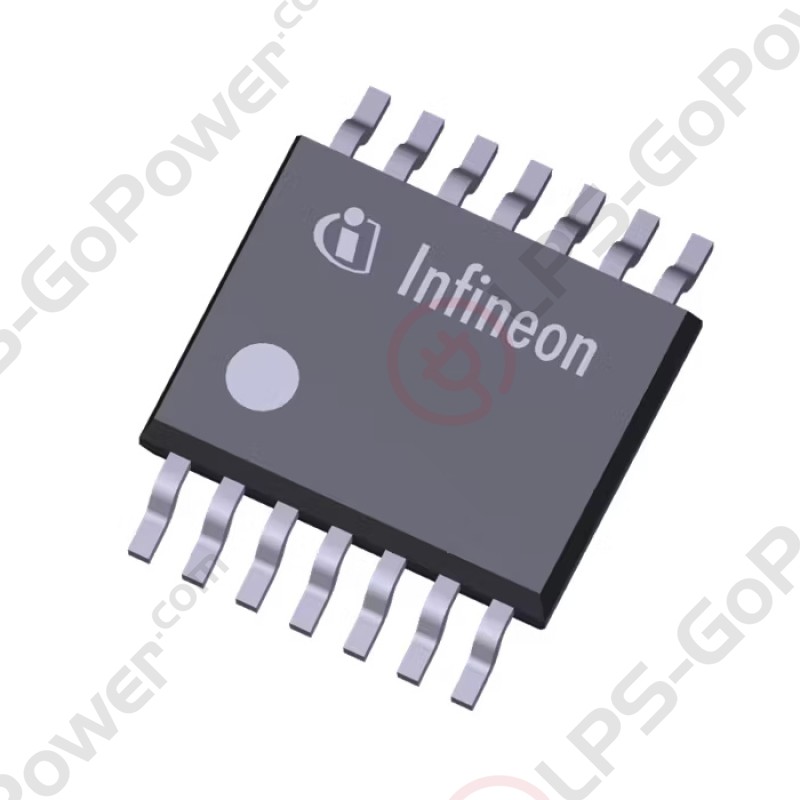

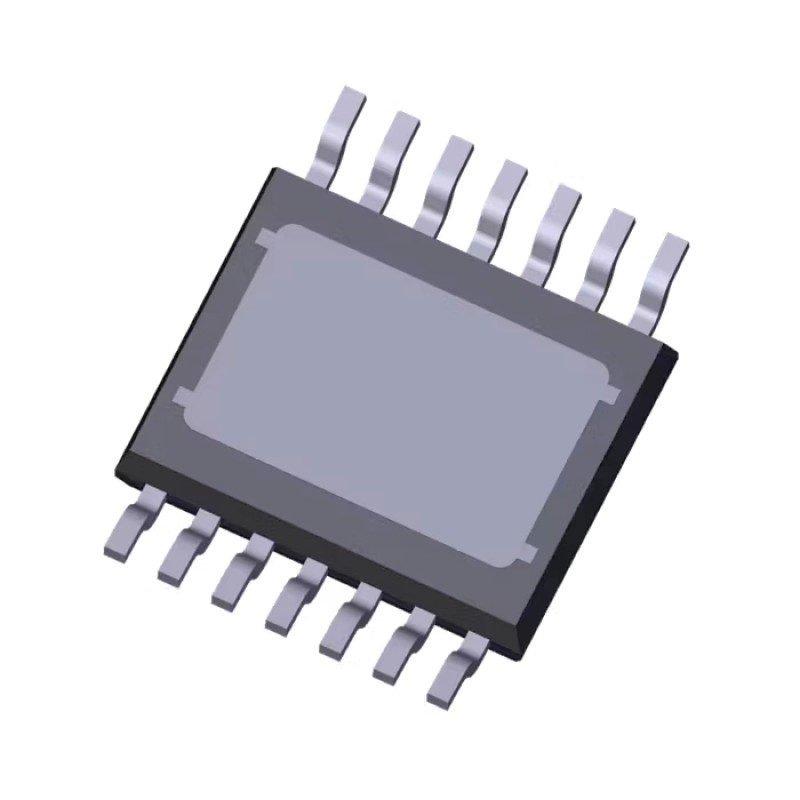

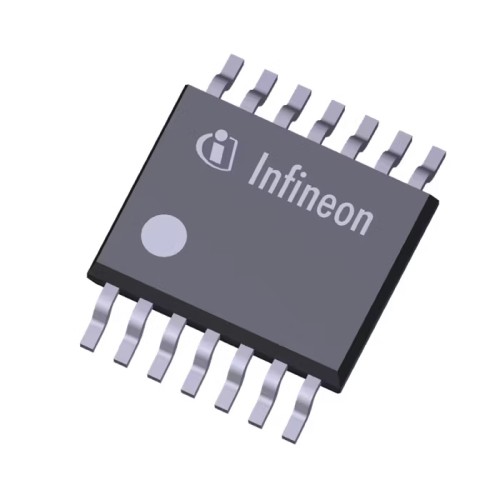

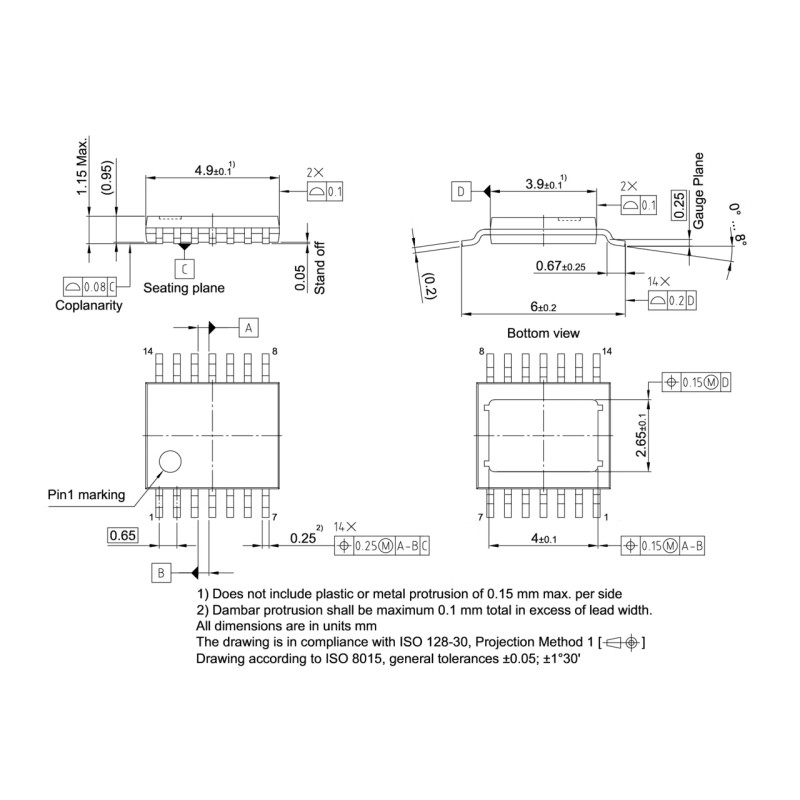

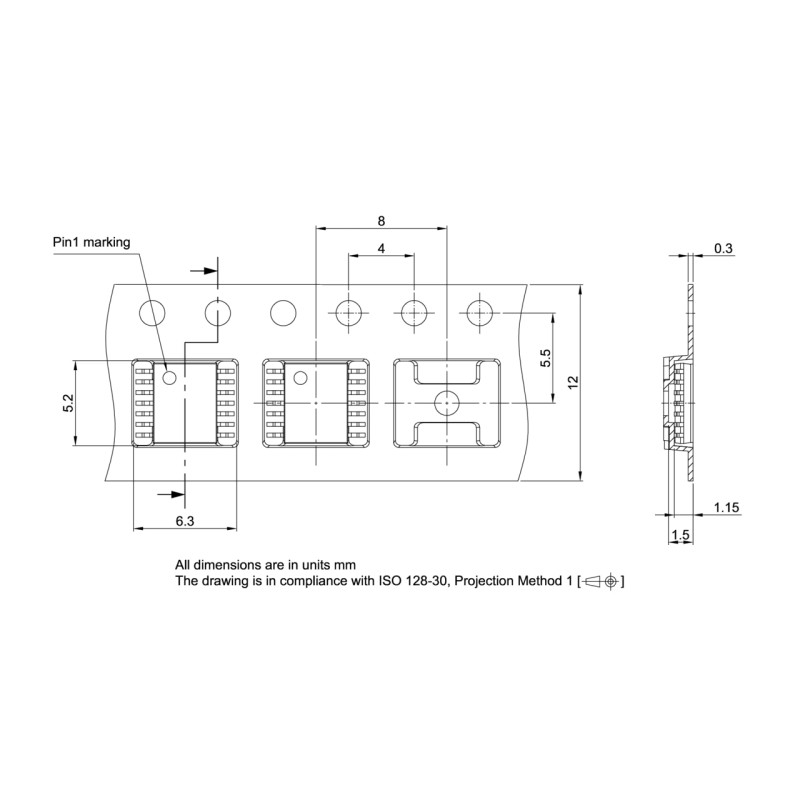

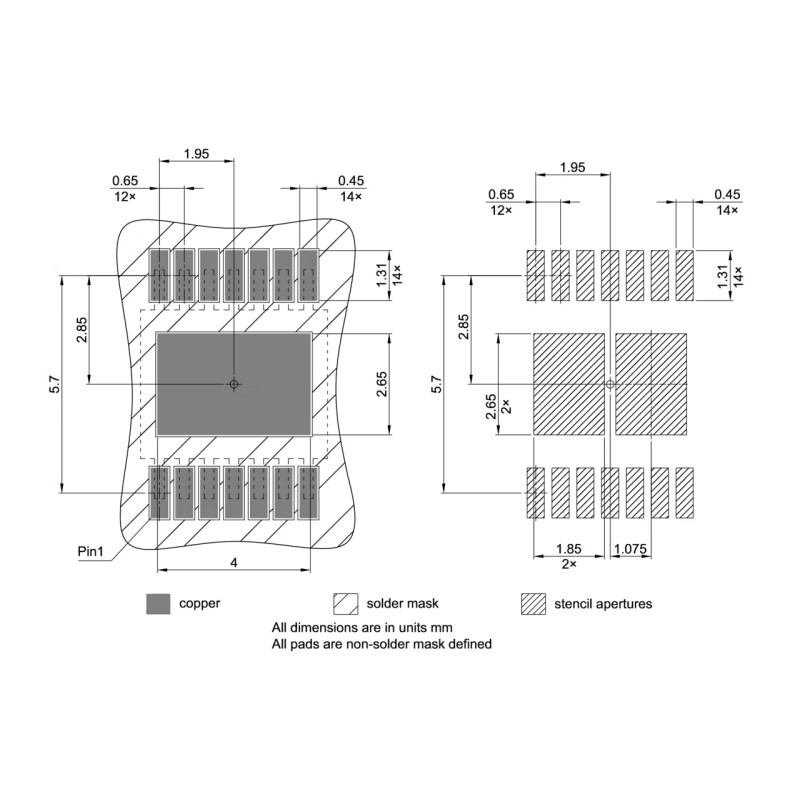

Infineon Smart High-Side Power Switch - BTS7004-1EPP
Infineon Smart High-Side Power Switch - BTS7004-1EPP  Infineon Smart High-Side Power Switch - BTS7004-1EPP  Infineon Smart High-Side Power Switch - BTS7004-1EPP  Infineon Smart High-Side Power Switch - BTS7004-1EPP

Infineon Smart High-Side Power Switch - BTS7004-1EPP

  • Availability: In Stock
  • Free Shipping
  • Shipping Time: 4~10 Business Days

  • $1.60

  • 100 or more $1.40
  • 500 or more $1.20
  • 1000 or more $1.15
  • 5000 or more $1.10


This product has a minimum quantity of 10
⚠️ CRITICAL COMPATIBILITY NOTICE

ADAPTER MODEL VS. CONNECTOR:
The same Adapter Model Number (e.g., A17-230P1B) may have Different plug sizes. Do not purchase by the adapter model alone.

STEP 1

Confirm your Laptop Model matches our Product Title.

STEP 2

Verify the Plug Size (Outer/Inner Diameter) in the specifications.

Not sure? Send us your Laptop Model for 100% confirmation!

The BTS7004-1EPP is a Smart High-Side Power Switch, providing protection functions and diagnosis.

Basic Features

  • High-Side Switch with Diagnosis and Embedded Protection
  • Part of PROFET™ +2 12V Family
  • ReverseON for low power dissipation in Reverse Polarity
  • Switch ON capability while Inverse Current condition (InverseON)
  • Green Product (RoHS compliant)

Protection Features

  • Absolute and dynamic temperature limitation with controlled reactivation
  • Overcurrent protection (tripping) with Intelligent Latch
  • Undervoltage shutdown
  • Overvoltage protection with external components

Diagnostic Features

  • Proportional load current sense
  • Open Load in ON and OFF state
  • Short circuit to ground and battery

Product validation
Qualified for automotive applications. Product validation according to AEC-Q100 Grade 1.

Parametrics

  • Certifications: ISO 26262-ready
  • Channels: 1
  • Classification: ISO 26262-ready
  • Current Limit range: 88 A to 114 A
  • Diagnostics: Sense
  • Family: PROFET™ +2 12V
  • IL Nominal Current (@ TA = 85°C): 15 A
  • IL (Short Circuit Current): 117.5 A
  • Load Current: 15 A
  • Mounting: SMT
  • Operating Temperature range: -40 °C to 150 °C
  • Planned to be available until at least: 2039
  • Qualification: Automotive
  • Recommended Operating Voltage range: 3.1 V to 28 V
  • toff (Turn OFF time) max: 220 µs
  • ton (Turn ON time) max: 210 µs
  • Undervoltage Recovery Delay: Yes



Product Summary
Parameter Symbol Values
Minimum Operating voltage VS(OP) 4.1 V
Minimum Operating voltage (cranking) VS(UV) 3.1 V
Maximum Operating voltage VS 28 V
Minimum Overvoltage protection (TJ ≥ 25 °C) VDS(CLAMP)_25 35 V
Maximum current in OFF mode (TJ ≤ 85 °C) IVS(OFF)_85 0.5 μA
Maximum operative current IGND(ON_D) 3 mA
Typical ON-state resistance (TJ = 25 °C) RDS(ON)_25 4.4 mΩ
Maximum ON-state resistance (TJ = 150 °C) RDS(ON)_150 8 mΩ
Nominal load current (TA = 85 °C) IL(NOM) 15 A
Minimum overload detection current (TJ = -40°C) IL(OVL0)_-40 107 A
Typical current sense ratio at IL = IL(NOM) kILIS 20000
