Infineon 32-Bit Single-Chip Microcontroller - SAK-TC397XP-256F300S BD
Infineon 32-Bit Single-Chip Microcontroller - SAK-TC397XP-256F300S BD  Infineon 32-Bit Single-Chip Microcontroller - SAK-TC397XP-256F300S BD  Infineon 32-Bit Single-Chip Microcontroller - SAK-TC397XP-256F300S BD  Infineon 32-Bit Single-Chip Microcontroller - SAK-TC397XP-256F300S BD  Infineon 32-Bit Single-Chip Microcontroller - SAK-TC397XP-256F300S BD  Infineon 32-Bit Single-Chip Microcontroller - SAK-TC397XP-256F300S BD

Infineon 32-Bit Single-Chip Microcontroller - SAK-TC397XP-256F300S BD

  • Availability: In Stock
  • Free Shipping
  • Shipping Time: 4~10 Business Days

  • $57.00

  • 100 or more $51.00
  • 500 or more $50.00
  • 1000 or more $49.00


This product has a minimum quantity of 10
⚠️ CRITICAL COMPATIBILITY NOTICE

ADAPTER MODEL VS. CONNECTOR:
The same Adapter Model Number (e.g., A17-230P1B) may have Different plug sizes. Do not purchase by the adapter model alone.

STEP 1

Confirm your Laptop Model matches our Product Title.

STEP 2

Verify the Plug Size (Outer/Inner Diameter) in the specifications.

Not sure? Send us your Laptop Model for 100% confirmation!

Infineon's second-gen AURIX microcontroller in embedded flash 40 nm tech enhances performance, memory, connectivity, and scalability for new automotive trends. With over 20 products, this family offers a highly scalable safety microcontroller range. The top-tier TC39x features 6 cores at 300 MHz, up to 6.9 MBytes embedded RAM, and power consumption below 2 W, with mirrored embedded flash banks enabling A/B swap capabilities.

Parametrics

  • # of cores / lockstep cores: 6/4
  • ASIL/SIL support: ASIL-D/SIL-3
  • CAN Nodes: 12
  • Classification: ISO 26262-compliant
  • DMA Channels: 128
  • DSP Functionality: Yes
  • eMMC: Yes
  • External Bus Interface: No
  • Family: AURIX™ TC3
  • Floating Point Unit: Yes
  • Hardware Accelerator: No
  • LIN: 12
  • Number of ADC Modules: 18
  • On-chip Clock Generation: Yes
  • On-chip Voltage Regulator: Yes
  • Oscillator Watchdog: Yes
  • Program Memory: 16 MByte
  • Real Time Clock: Yes
  • SPI: 6
  • SRAM (incl. Cache): 2816 kByte
  • Temperature: -40°C - +125°C
  • Type of Memory: Flash
  • Watchdog Timer: Yes

Features

  • 6 TriCore™ running at 300 MHz
  • Supporting floating point
  • 16 MB flash with ECC protection
  • 6912 KB SRAM with ECC protection
  • 1 Gbit Ethernet
  • 12x CAN FD, 2xFlexRay, 4xQSPI, 1x eMMC/SDIO
  • Diverse timer modules (GTM, CCU6, GPT12)
  • eVita fullHSM (ECC256 and SHA2)

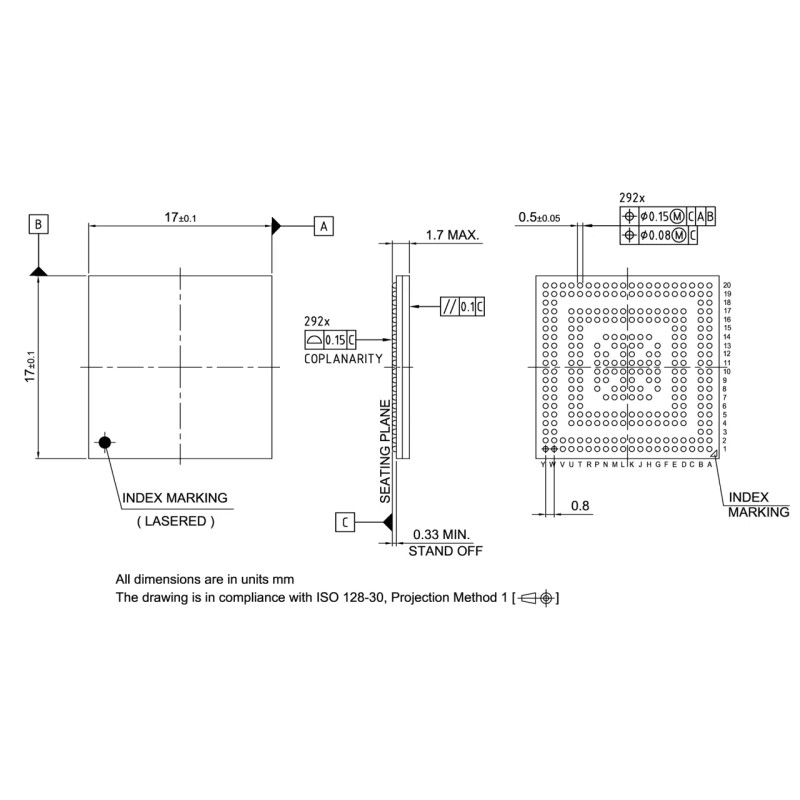

  • BGA-292 package
  • ISO 26262 ASIL-D
  • Temperature: -40°C to 125°C
  • Single voltage supply 5 V or 3.3 V
